Multimediálne autorádiá s GPS a DVD

Multimediálne rádiá pre pokojnú a zábavnú cestu na dovolenku.

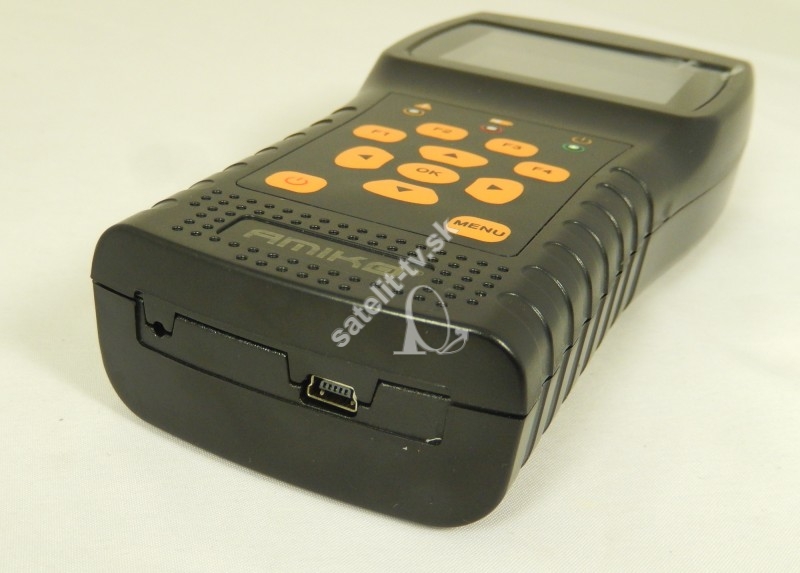

AMIKO MULTITRACKER

Cena s DPH:
119,90 €
Dostupnosť:
Skladom
Obj. číslo:
SATNR-02568

Nastavte si strážneho psa.

AMIKO MULTITRACKER

Merací prístroj AMIKO MULTITRACKER (DVB-S/S2/T/T2/C) novy model s novymi funciami - merací pristroj ideálny nástroj pre meranie signálov pre každý typ inštalácie DVB-T/T2, DVB-S/S2, DVB-C s možnostou prepínania napatia na antenu v T/ T2 pasme 5V alebo 12V.

  • DVB-S / S2 / T / T2 / C Signals supported
  • 320x240px color LCD display with controllable backlight
  • Easily editable database
  • Satellite Angle calculation (Azimuth & Elevation)
  • Signal lock audible notification: On/Off
  • DiSEqC support: 1.0, 1.1, 1.2 & USALS
  • Easy firmware upgrades via USB
  • Easy database updates vi PC tool over USB
  • Fast charging Li-ion battery - Up to 3 hours of on time
  • DC 12V power supply
  • Tuner & Demodulation
    Satellite
    Demodulation: QPSK, 8PSK, 16APSK, 32APSK
    Code Rate: 1/2,1/3,1/4,2/3,2/5,3/4,1/2,3/5,5/6,7/8,8/9,9/10
    Symbol Rate: 1~45MSPS
    Input Frequency: 950-2150MHz
    Input Impedance: 75Ohms
    Min. Level In: 35dBuV (noise)
    Max Level In: 90dBuV
    LNB Power: 13V Vertical, 18V Horizontal (300mA)
    Bandwidth: C/Ku-band (selectable)
    DiSEqC support: 1.0, 1.1, 1.2 & USALS

    Terrestrial
    DVB-T:
    Carriers: 2k, 4k, 8k
    Guard Interval: 1/4, 1/8, 1/16, 1/32
    Code Rate: 1/2, 2/3, 3/4, 5/6, 7/8
    Modulation: QPSK,16-QAM,64-QAM
    Bandwidth: 6, 7 and 8 MHz

    DVB-T2:
    Carriers: 1k, 2k, 4k, 8k, 8k+E, 16k, 16k+EXT, 32k,32k+EXT
    Guard Interval: 1/4, 19/256, 1/8, 19/128, 1/16, 1/32, 1/128
    Code Rate: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6
    Modulation: QPSK, 16QAM, 64QAM, 256QAM
    Bandwidth: 6,7 and 8 MHz
    PLP Mode: Single / Multiple
    PLP ID: 0-255
  • Tuner & Demodulation
    Cable
    Frequency range: 44MHz ~ 870MHz
    Symbol rate: 1MS/S ~ 7.9MS/S
    QAM mode: 16 / 32 / 64 / 128 / 256 QAM
    Input RF level range: 30dBμV ~ 100dB μV
    SNR: 20dB ~ 40dB, + 2dB
    BER: 1.0E-3 ~ 1.0E-9

    Power
    Power Supply: 100-240V (50/60Hz) AC in / 12V/1200mA out
    Fast Charging

Merací prístroj AMIKO MULTITRACKER (DVB-S/S2/T/T2/C) novy model s novymi funciami - merací pristroj ideálny nástroj pre meranie signálov pre každý typ inštalácie DVB-T/T2, DVB-S/S2, DVB-C s možnostou prepínania napatia na antenu v T/ T2 pasme 5V alebo 12V.
