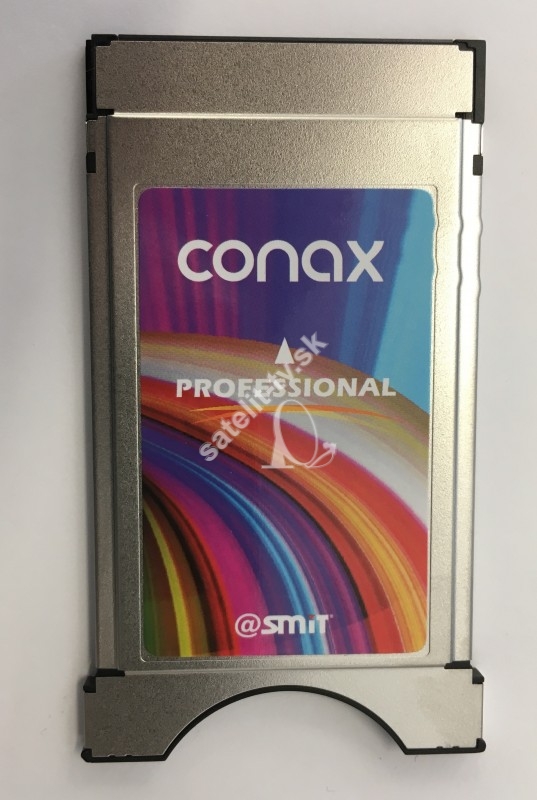

CAM modul Conax SMIT Professional PRO 4 umožňuje v profesionálnych DVB staniciach dekódovať zakódované TV kanály kódované systémom podmieneného prístupu IRDETO. Umožňuje simultánne dekódovanie až 4 kanálov v profesionálnych zariadeniach alebo v prijímačoch.

Professional Conax 4 ch CA module

Product description:

• Dimensions: PCMCIA type II
• Interface protocols of the host: In full compliance with DVB-CI Profile 1 protocol;
• External interface of IC card: Build-in SmartCard reader, in compliance with ISO7816 protocol;
• Operating system: Embedded Linux system with proprietary intellectual property rights;
• Internal descrambler: Integrated universal DVB descrambler;
• MPEG DEMUX: Multi-channel SECTION and PID filter configurable through software;
• Enclosure structure: Latest compact structure and design for assembly;
• Descramble up to 4 TV Channels using one module;

SMiT Professional CAM Specification

• Document Number: version: 1.0 date: 2011-8-8 Page: 1/2
• SMIT 1660 Professional Conax CAM Specification

Product Description:

• The CAM can be used on IRDs, which has DVB-CI interface
• Meticulously tested with IRDs models from Europe, the middle East, Australia, Asia
• The CAM supports Conax CAS 4.1 enhanced secure features
• With an authorized Conax smart card, the CAM gives access to DVB encrypted program
• Advanced language development environment
• Supporting subsequent development of value-added services

Chipset & TS bandwidth:

• ASIC chip with proprietary intellectual property right
• Based on the Embedded 32-bit CPU (ARM7TDMI)
• Adopting advanced 0.18-micron technology
• Flash Size: 4M Bytes
• RAM Size: 384K Bytes
• TS process bandwidth: Up to 96Mbps
• Limited thermal aging test is over 24 hours

Physical & Electrical Characteristics:

• Dimensions: Type II PCMCIA card (100mm x 58mm x 4mm)
• Connector: 68-pin PCMCIA slot
• Operation voltage: 4.5V ~ 5.5V
• Operation current: <150mA
• Low power consumption: < 600mW

Standard:

• Plug and Play
• Compatible with DVB-CI standard (EN50221)
• Compatible with ETR289
• Compatible with ISO7816 T=0 protocol, Class A
• Compatible with MPEG-2/MPEG-4
• Compatible with the RoHS Directive 2002/95/EC and its subsequent amendments

Descrambling & Filtering:

• Supporting common descrambling algorithm of Europe
• Multi services descrambling (Optional), up to 4 services descrambling
• Hardware based section filters
• Up to 64 configurable PID filters for filtering packet or section data

Software Upgrade:

• Support OTA software upgrade

CAM modul Conax SMIT Professional PRO 4 umožňuje v profesionálnych DVB staniciach dekódovať zakódované TV kanály kódované systémom podmieneného prístupu IRDETO. Umožňuje simultánne dekódovanie až 4 kanálov v profesionálnych zariadeniach alebo v prijímačoch.
